BilGuard® 2.0 Hatch Railing System

The BilGuard 2.0 fixed roof Hatch Railing System provides a permanent means of fall protection around the top of roof hatch openings. BilGuard 2.0 has been developed to exceed OSHA Fall Protection Regulations (29 CFR 1910.23).

BilGuard 2.0 is strong and easy to install with Aluminium rail construction and non-penetrating attachment. It can be installed quickly and easily to new or existing Bilco Roof Access Hatches and Smoke Vents with capflashing.

Roof Hatch Railings

Features / Benefits

Aluminium rail construction with RAL 7047 light grey powder coat finish

Satisfies the requirements of OSHA 29 CFR 1910.23

Standard self-closing and latching gate feature ensures that the opening is protected at all times.

Non-penetrating attachment attaches directly to the Roof Hatch capflashing.

Fits all Bilco Roof Hatches with capflashing.

Lightweight design can be easily moved to the roof level.

Available in a variety of sizes to accommodate any roof opening and can be easily installed on new or existing Roof Access Hatches.

5-year warranty

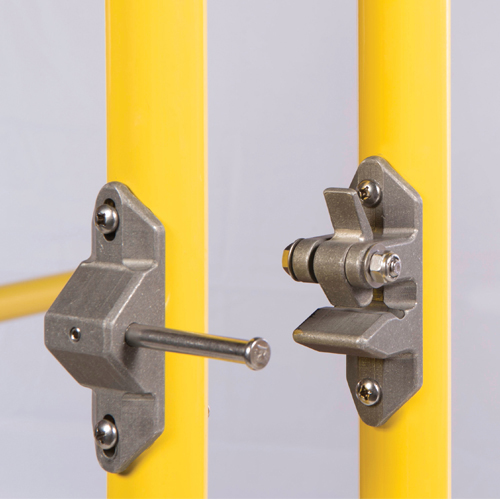

Corrosion-resistant latching mechanism with interior and exterior release (patent pending).

Pivoting mounting sleeve for installation flexibility.

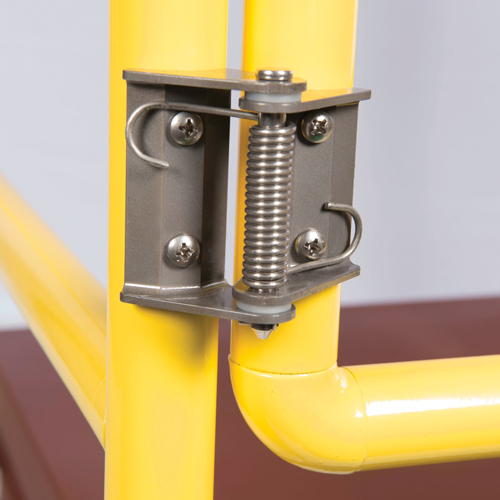

Heavy-duty Stainless Steel spring hinges ensure continuous fall protection.

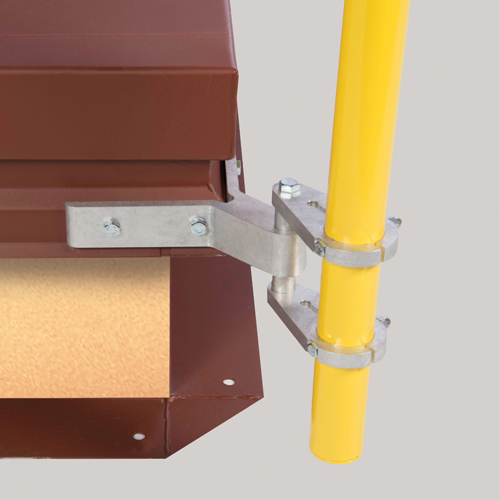

Non-penetrating mounting bracket with innovative post clamping feature.

BILGUARD 2.0 PRODUCTS

RL2-STBC for Roof Hatch S-50TB / 915x760mm

RL2-ETBC for Roof Hatch E-50TB / 915x915mm

RL2-FTBC for Roof Hatch F-50TB / 1220x1220mm

RL2-CSTBC for Roof Hatch CS-50TB / 760x1500mm

RL2-LTBC for Roof Hatch L-50TB / 760x2440mm

2RLW-SSYTBC for Roof Hatch SSY-50TB / 760 x 3360mm

RL2-SSTBC for Roof Hatch SS-50TB (single leaf) - special size

RL2-D C  for Roof Hatch D-50T (double leaf) - special size

Performance Standards Roof Hatch Railings

SUITABILITY Satisfies OSHA 29 CFR 1910.23
WARRANTY 5 years
PATENT U.S. Patent 6,931,793 (and patent pending).

Guide Specification Roof Hatch Railings

FRAMEØ 32mm Schedule 40 pipe / 6061 T6 Aluminium alloy
BRACKETS6063 T5 Aluminium extrusion
LOCKING MECHANISMcast Aluminium / spring hinges
FASTENERSStainless Steel Type 316
FINISHPowder coat finish
