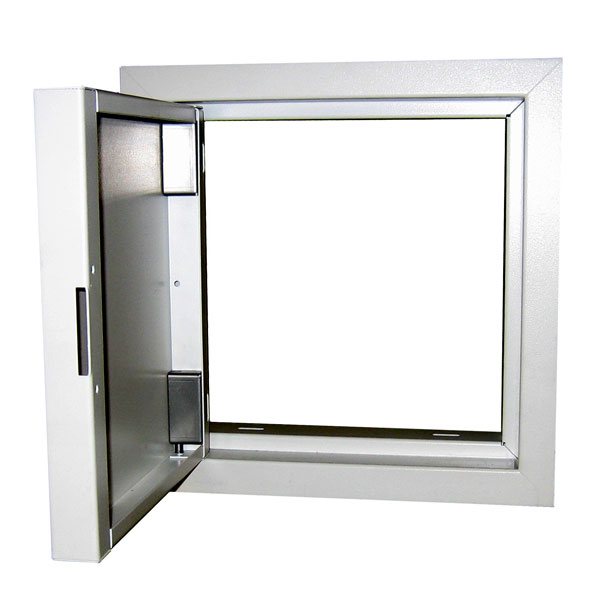

Howe Green Combihatch wall access cover for plastered walls
Wall Access Cover
Combihatch plastered Wall Access Panel

Popular in commercial development and refurbishment projects, the Combihatch metal-faced side-hinged Wall Access Cover is suitable for situations where regular access is required to concealed services behind a plastered or solid wall. A 1 hour fire rating is optional.

Manufactured from corrosion-resistant galvanised steel in Ware, Hertfordshire, all covers are made to your exact specification (between stated maximum and minimum sizes) with no time or cost constraint.

Howe Green | Combihatch

Features / Benefits

Concealed hinge ensures the Wall Access Panel fits flush with the surrounding wall.

Quick and easy to install ensuring minimum disruption.

Maintenance-free.

TYPICAL WALL FINISHES

Plastered walls

SUITABILITY

Suitable for new build and refurbishment projects. Often used in commercial premises, such as hotels and office blocks where regular, easy access is required to services concealed behind the wall.

SIZES

Non-fire rated: Single or Double Leaf

Minimum leaf size w 300 mm x h 300 mm
Maximum door size w 600 mm x h 900 mm
Maximum leaf size w 1000 mm x h 1000 mm

Cut out size = door size plus 10 mm

1 hour fire rated: Single Leaf

Minimum leaf size w 300 mm x h 300 mm
Maximum leaf size w 662 mm x h 1026 mm or w 756 mm x h 756 mm

(Any leaf within the aspect ratios can be used as long as the dimensions are not exceeded)

1 hour fire rated: Double Leaf

Minimum leaf size w 300 mm x h 300 mm
Maximum leaf size w 600 mm x h 1026 mm

Cut out size = door size plus 35 mm

OPTIONS

Wall Access Covers can be fitted with either budget or security locks.

Outer frames can incorporate a plaster bead or picture frame surround.

Special finishes – for example brushed Stainless Steel.

1 hour fire rating to BS476: Part 22: 1987.

Performance Standards Howe Green | Combihatch

SUITABILITY Plastered walls for regular access

Downloads Howe Green | Combihatch

Datasheet (.pdf)
CAD Drawings (.zip)

External Resources / Links

Guide Specification Howe Green | Combihatch

MATERIALSManufactured from 1.2mm electro-galvanised Mild Steel, powder coated to RAL 9003 matt finish
LEAF/DOOR SIZES(Min-Max sizes) see above
